The Gallery .
1m motorised & arc

1m motorised 1m motorised ex text

MOTORISED 1.1m on Custom brackets - nearly 60e & over 60w
A massive arc of satellites, excellent Nilesat reception for the size & area with large margin beIN Sports
 strong custom brackets & brace bars that would take a 1.2 if required.


90cm x sky x DTV all hidden 1a

PURPLESAT MOTORISED SATELLITE SYSTEMSHidden 90 & Sky dish 1a
Now you see it >>                                                        >> now you don't
The motorised dish & sky dish photo could only be taken on a ladder on the roof & cannot be seen from the grounds or road.
HIDDEN MOTORISED DISH & SKY DISH CHIMNEY MOUNT

 Aesthetically designed strong custom chimney brackets to achieve a no dish look on the front of the property.
Not even the Sky dish escaped the hidden treatment being removed from the front & the render made good & yet the motorised satellite dish acheived a massive arc of over 57e to 60w & better reception due to shielding from street lamps etc. for both the motorised & Sky dish by the roof itself.
Also fitted was a high gain wideband UHF for DTV distributed to all rooms using the existing coax where possible to limit disruption using higher, cleaner input signals & deliveiring full DTV signals on all outlets including the new HD channel's MUX. The Chimney was also pointed with a high tensile waterproof PVA mortar mix.

Also

2 roof tiles were noticed by the installer to have been broken by what looked like a roofer who had been employed to repair ridge tiles & a potentially dangerous large piece of mortar from the ridge left next to them (probably what was dropped to break the tiles in the first place) ..
The broken tiles would have been letting a lot of rain water in the roof & damaging the underfelt that perishes if this is allowed to continue for too long.
The broken tiles were pointed out to the owner & we replaced the tiles free of charge (the actual tiles were less than £3) saving the owner yet another roofer call out & water damage to the un defelt & ultimately the house ... estmated at least £3-400 or potentially £1000's had it not been noticed for a very long time- -
it took us minutes because we had all the gear installed already for the motorisd satellite instal & were there & know properties & building techniques for safe & strong satellite installation ...
if we see a problem with a property we always point it out to the owner & often do quick roof repairs etc.. free - & that can cancel out the cost of the satellite install.

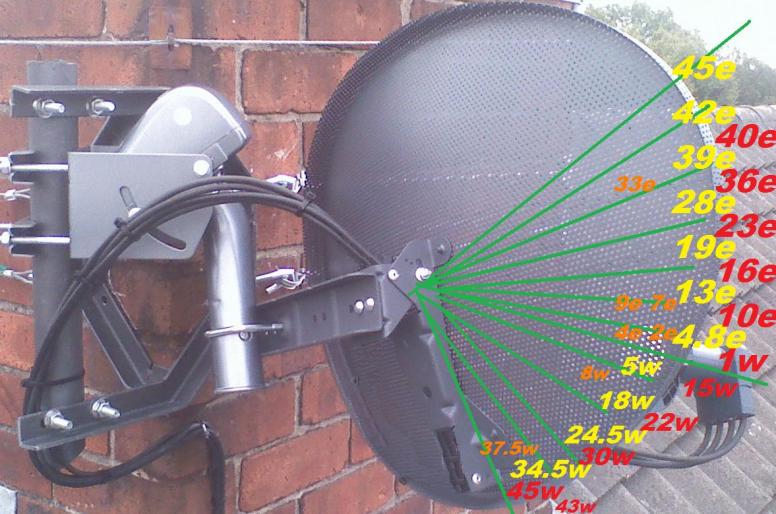

MOTORISED 90CM 50+ east to west 40+ satellites.

PURPLESAT MOTORISED SATELLITE SYSTEMS
1m_over_conservatory_1acable tidy


MOTORISED 1.1m  45e to 58w- c. 40+ satellites.
45e 42e 39e 36e 33e 28.2e 26e 23.5e 21.6e 19.2e 15.8e/16e 13e 10e 9e 7e 3.1e 0.8w/1w 4w 5w 7w 7.3w 8w 11w 12.5w 15w 18w 22w 24.5w 27.5w 30w 34.5w 37.5w 43w 45w 58w
3  3  Exppsed wind swept corner HD 3
PURPLESAT MOTORISED SATELLITE SYSTEMS

Shed Mounted Lenson Heathshed front

shed diag 1a
Owner built  very strong out building mounted  motorised satellite dish & Diag of planned install options.

LNBS DISHES MOTORS RECEIVERS AERIALS FEEDHORNS  MULTISWITCHES BRACKETS
cc1a slim 1aaa 45 degree bracket & strapping gable end east facing 1a long pole 1a side shot RD long shot 1a azz crop flip 1a long shot 1a Motorised MINI DISH 1-1m motorised low down = 50+e/w 1m_over_conservatory_1a
MOTORISED SATELLITE INSTALLATIONS - BIG, SMALL DISH & DIGITAL AERIAL INSTALLS

TRIPOD GROUND-ROOF MOUNTTRIPOD GROUND-ROOF MOUNT

Roof or Ground Mount (Penetrating)

Pole is 50mm x 3.5mm wall galvanised & coated shedule 40  steel pipe & base is triangle welded 50mm x 50mmx 4mm  angle bolted to 6" concrete roof with 2 lateral brace bars & sealed with 30 year mastic. A TD88 (90cm) receiving Nilesat 102 verticals plus 7.3w / 26e / 4w / 4.8e etc... good margin reception and an eastern to 53e.
88 in longport
TD 88 (90cm) motorised Triax dish- 53e to 45w 40+ satellites.
This had what looked like quite a restricted view having a hill & houses to all it's south view but the arc was still 53e to45w & possibly further due to our accurate pre-surveys & it didn't need to be a high install. It is one of the most suitable looking positions on an attractive property.
60cm Garden install 1a
Garden Mount



PURPLESAT MOTORISED SATELLITE SYSTEMS80cm Motorised over Apex
Over the apex motorised Mesh dish.
Installing large dishes - especially motorised requires experience & structural & engineering skills at purplesat
PURPLESAT MOTORISED SATELLITE SYSTEMS
. We arrived at this installation to find a 1m dish had previously been installed in the same place on the gable end over the sub apex (there is a higher main roof apex/ gable end) on a thin steel aerial pole & pair of standard T & K brackets. It had previously been blown down damaging the dish, LNB, pole and caused cracks in the wall and could have caused injury at the time. The damaged dish had been reinstalled on an equally inappropriate L bracket lower down and it's efficiency was lower than a 70cm for noise & signal power levels.
We changed the specification to a higher performing 80cm perforated mesh dish as the customer did not require anything larger and used super strong purplesar braced brackets & and brace bars & solid pole to withstand 100mph+ winds & give good functionality up to 60mph. Above 60mph and we design the installations to 'give' naturally to limit strain on the installation and building - most dishes - including Channel Masters are rated this way.
1-1m motorised low down = 50+e/w

DISHES CAN BE LOW DOWN & STILL SEE 40 SATELLITES FROM OVER 50e to 50w

This was installed in an attractive rural location and as you can see is less than a meter off the ground and yet still achieved a larger arc than most installers ... . and including reception from Nilesat at 7w.

becc 1a

Strong pipe welded mount overlooking an exposed vista with large heavy steel motorised galvanised dish.


53e to 45w & possibly further / 40+ satellites - 5000-10000 channels & good Viasat HD reception

PURPLESAT MOTORISED SATELLITE SYSTEMS
dee 5
TD88 on Darkmotor Superior 57e to 43w & possible over 60e & 40 satellites+.
Another low down dish installed below the gutter & in the middle of a housing estate surrounded by houses & trees on all sides on it's southeast & west view & yet with the experience at Purplesat.com still delivered a massive arc of possibly over 60 degrees to the east to 43w & with a smaller footprint on the wall as a result.

side_view_crop_1aa

TD 1.1 South facing wall & under the gutter mount x twin LNB to VU+Duo [53e]45e - 50w+

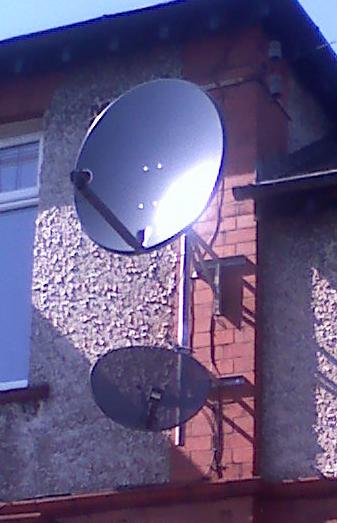

88 motorised & sky dish st hel
90 CM Motorised dish x 42 satellites from 57e to 45w & beyond plus Sky zone 1 dish with 4 outputs to 4 rooms.
Round the corner mounted motorised satellite dish with tripple lashing kits & wall bolts with reinforced brickwork.
These Purplesat.com 45 degree T & K & KK brackets allow access to the arc round corners allowing the main anchor points to be in the 'safe' zone on the brickwork - in this case this one was chminey mounted & the chimney was inspected for it's condition & suitability & strengthened by higher strength water proof PVA mix & in pure form and as the admixture for the mortar for pointing along with 30 year lead mastic making a much stronger than normal chimney [which also adds to the property's building integrity & longevity].
Combined with this the brackets are not only bolted in place & all anchors consolidated with water proof PVA , but also triple lashing kits were used to produce a very solid job that was also barely visible from the front of the property. Only after this was the motorised dish installed & attained an amazing 53e to 45w & beyond & 40+ satellites & nearly 10,000 channels
motorised sky dish on chimney motorised sky dish on chimney 2
panarama 1
PURPLESAT MOTORISED SATELLITE SYSTEMS

Sky/Freesat & Hotbird on sky dishesSky/Freesat & Hotbird on sky dishes2
2 neat fixed Sky dishes for Freesat/Sky on one and Hotbird on another via a quality automatic diseqc switch



PURPLESAT MOTORISED SATELLITE SYSTEMS

LNBS DISHES MOTORS RECEIVERS METERS CABLE AERIALS FEEDHORNS AMPs MULTISWITCHES BRACKETS
cc1a slim 1aaa 45 degree bracket & strapping gable end east facing 1a long pole 1a side shot RD long shot 1a azz crop flip 1a long shot 1a Motorised MINI DISH 1-1m motorised low down = 50+e/w 1m_over_conservatory_1a
MOTORISED SATELLITE INSTALLATIONS - BIG, SMALL DISH & DIGITAL AERIAL INSTALLS


EXTREME LINE OF SIGHT INSTALLATIONS
HIDDEN ROUND THE BACK- DIFFICULT TO NEAR IMPOSSIBLE LINE OF SIGHT PROBLEM SOLVING.
 arc over steep long roof & chimneys to east & west
Very long pole installation to compensate for long sloping roof that included an extention on a rear installation with large chimney.s
The arc was impossible to get the arc from the ideal position of just over the gutter because of the length of the roof but still resulted in 53e to 45w & 40+ satellites.
To install a 90cm motorised dish at this height above the top bracket is quite a difficult engineering problem to maintain the solid motor/ dish at an acceptable standard for medium strong winds. The pole extends over 2.5m above the top bracket & is braced from the wall to maintain that level of rigidity with both pole & bracing being of lightweight alloy material to reduce overall weight
